# Order a mosaic

Order RGB, elevation, crop health, and multispectral mosaics from a survey in FieldAgent Web, and what the Precision Aligned option means.

A mosaic is ordered from a survey that has already been imported into the field. Sentera stitches the photos in the cloud and adds the finished mosaic to the field's map layers.

The demo below is a working, view-only copy of FieldAgent Web with the **ORDER MOSAICS** form. Follow the steps in the copy, or press **Show me** to watch each one; no order is placed.

{% @fieldagent-demo/embed content="order-mosaic" %}

<a href="https://michael-bohman.github.io/fieldagent-demo/demo.html?s=order-mosaic&#x26;mode=page" class="button secondary">Open this demo full size</a>

## Order

1. Open the field and click **ORDER MOSAICS**.
2. In **Select Survey**, choose the survey (flight date) to stitch. The product list loads for that survey.
3. Select one or more products. Products the survey cannot support are dimmed; for example, the **Multispectral Crop Health** products need a multispectral sensor, and **False Color NDRE** needs a red-edge band.
4. Check the **Order Summary** at the bottom of the panel. It names the product and its catalog number, for example **Field Scale RGB Mosaic 71313-00**.
5. Click **SUBMIT**.

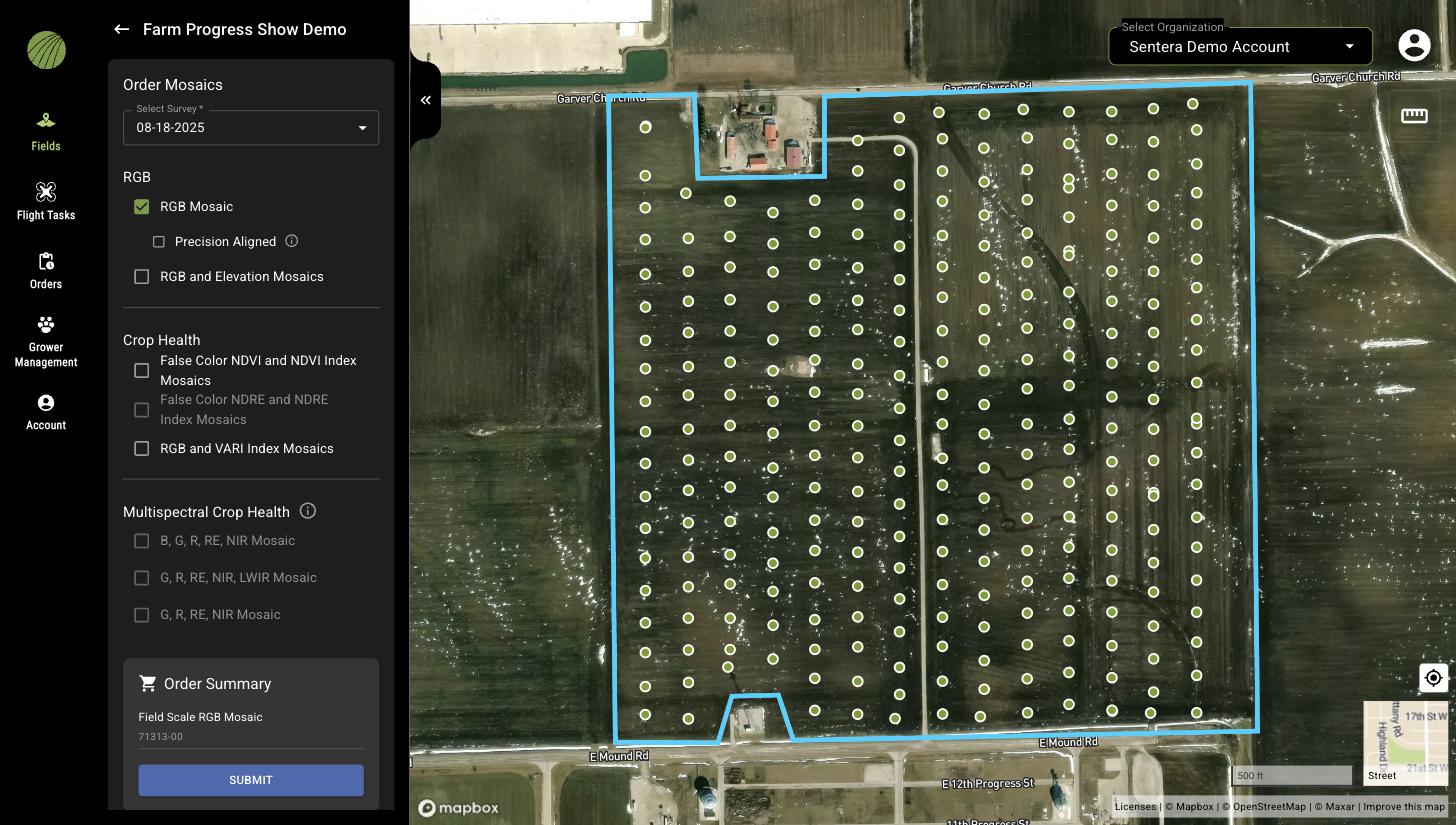

<figure><img src="https://4042936416-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FNnNa4XKy1hMfEEmHLPqZ%2Fuploads%2Fgit-blob-9f63f7d3776d5e1d9209ba839b3a11323971e4af%2Ffa-web-order-mosaics-products.jpg?alt=media" alt="The Order Mosaics panel with a survey selected: RGB Mosaic checked with a Precision Aligned option, RGB and Elevation Mosaics, the Crop Health products, the Multispectral Crop Health products, and the Order Summary showing Field Scale RGB Mosaic 71313-00"><figcaption><p>Order Mosaics for an RGB survey. The multispectral products are dimmed because this survey has no multispectral photos.</p></figcaption></figure>

FieldAgent emails you when the mosaic is ready. The order also appears on the **Orders** page with its status; see [Orders and flight tasks](/fieldagent-documentation-updates/ordering/orders-and-flight-tasks.md).

## Products

| Group                         | Product                                                                                  | Order Summary shows                                      | You get                                                                                                                                                                    |
| ----------------------------- | ---------------------------------------------------------------------------------------- | -------------------------------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **RGB**                       | **RGB Mosaic**                                                                           | Field Scale RGB Mosaic 71313-00                          | A true-color mosaic.                                                                                                                                                       |
| **RGB**                       | **RGB and Elevation Mosaics**                                                            | Elevation Map 71309-02                                   | An **RGB Mosaic** and an **Elevation Mosaic** (digital surface model). See [Elevation Mosaic](/fieldagent-documentation-updates/analytics/elevation-mosaic.md).            |
| **Crop Health**               | **False Color NDVI and NDVI Index Mosaics**                                              | Field Scale Crop Health Mosaic 71303-00, Variant: NDVI   | A **Crop Health Mosaic** colorized by NDVI.                                                                                                                                |
| **Crop Health**               | **False Color NDRE and NDRE Index Mosaics**                                              | Field Scale Crop Health Mosaic 71303-00, Variant: NDRE   | A **Crop Health Mosaic** colorized by NDRE. Needs a sensor with a red-edge band.                                                                                           |
| **Crop Health**               | **RGB and VARI Index Mosaics**                                                           | Field Scale Crop Health Mosaic 71303-00, Variant: VARI   | An RGB mosaic and a VARI index computed from it. Works with RGB-only cameras.                                                                                              |
| **Multispectral Crop Health** | **B, G, R, RE, NIR Mosaic**, **G, R, RE, NIR, LWIR Mosaic**, or **G, R, RE, NIR Mosaic** | Multispectral and/or Thermal Crop Health Mosaic 71303-11 | A **Multispectral Mosaic** whose bands and indices you choose at view time. See [Crop Health mosaics](/fieldagent-documentation-updates/analytics/crop-health-mosaics.md). |

The band lists name the bands the sensor captured: blue, green, red, red edge, near infrared, and long-wave infrared (thermal).

## Precision Aligned

Each product has a **Precision Aligned** option that appears when the product is selected. Precision Aligned mosaics require ground control points or post-processing alignment, and are meant for plot analytics and for row-by-row alignment with other imagery datasets. Leave it off for ordinary field-scale work.

## Plans

All of the products above are included in the Scout, Advisor, and Advanced plans. Products outside your plan are dimmed in the list. See [Plans and features](/fieldagent-documentation-updates/get-started/plans-and-features.md).
