# Parameter Setup

## Parameters <a href="#parameters" id="parameters"></a>

One parameter change from the default Freefly settings is required for proper functionality of the 6X Series Sensors. Please see the instructions below.

| Parameter    | Value  |
| ------------ | ------ |
| MAV\_2\_MODE | NORMAL |

## Parameter Setup Instructions

{% stepper %}
{% step %}

### Power On the Aircraft and Hand Controller

Power the aircraft and hand controller on.
{% endstep %}

{% step %}

### Open AMC

Open AMC and verify the aircraft and hand controller are connected to each other.

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FruwrGoWakCzdx9mAUMld%2Fimage.png?alt=media&#x26;token=46ba1cd7-ab9d-4da2-bec9-6c9d634e852a" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Enter Advanced Mode

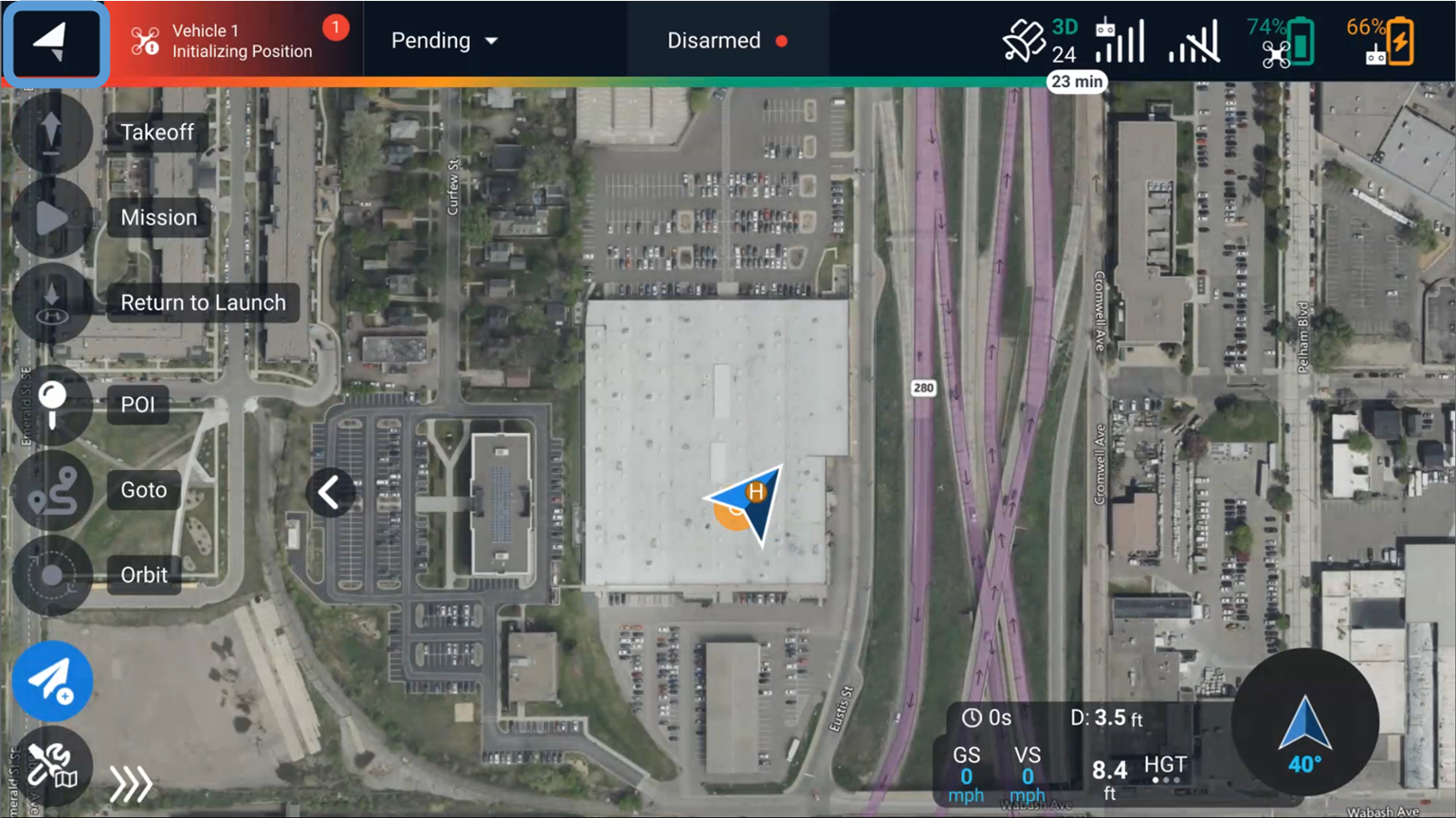

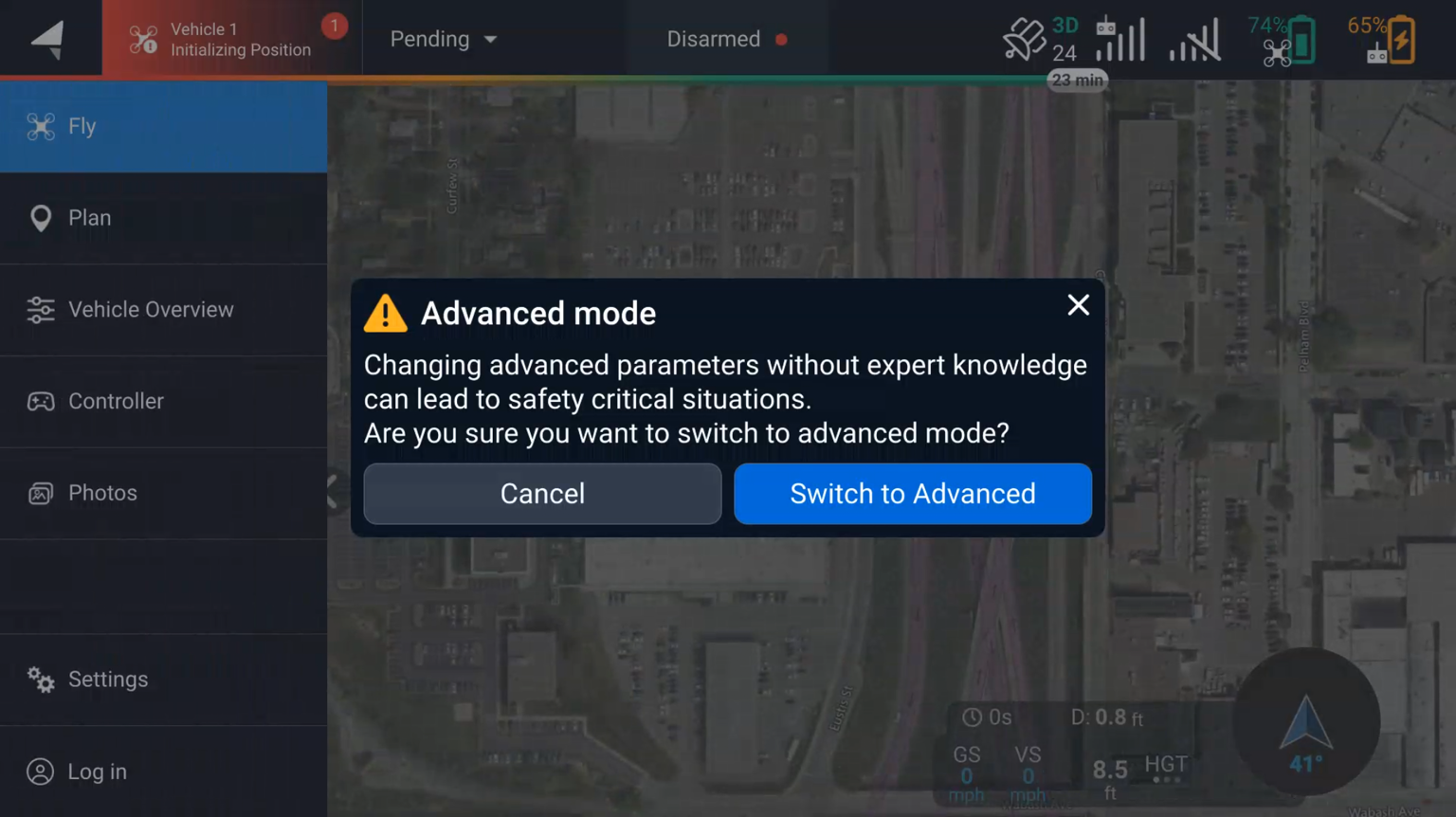

Repeatedly tap the Auterion logo in the upper left hand corner until the advanced mode pop up appears. Select Switch to Advanced.

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FNlLa5XUdzt6iHW2UBPtN%2Fimage.png?alt=media&#x26;token=95b262ed-84d0-4c13-9c3d-706da2ac2868" alt=""><figcaption></figcaption></figure>

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2F2TDGkEn4DHGJHr40Bhby%2Fimage.png?alt=media&#x26;token=eefcdb87-06fc-44d8-a227-bfda8cef5d9e" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Open the Advanced Menu

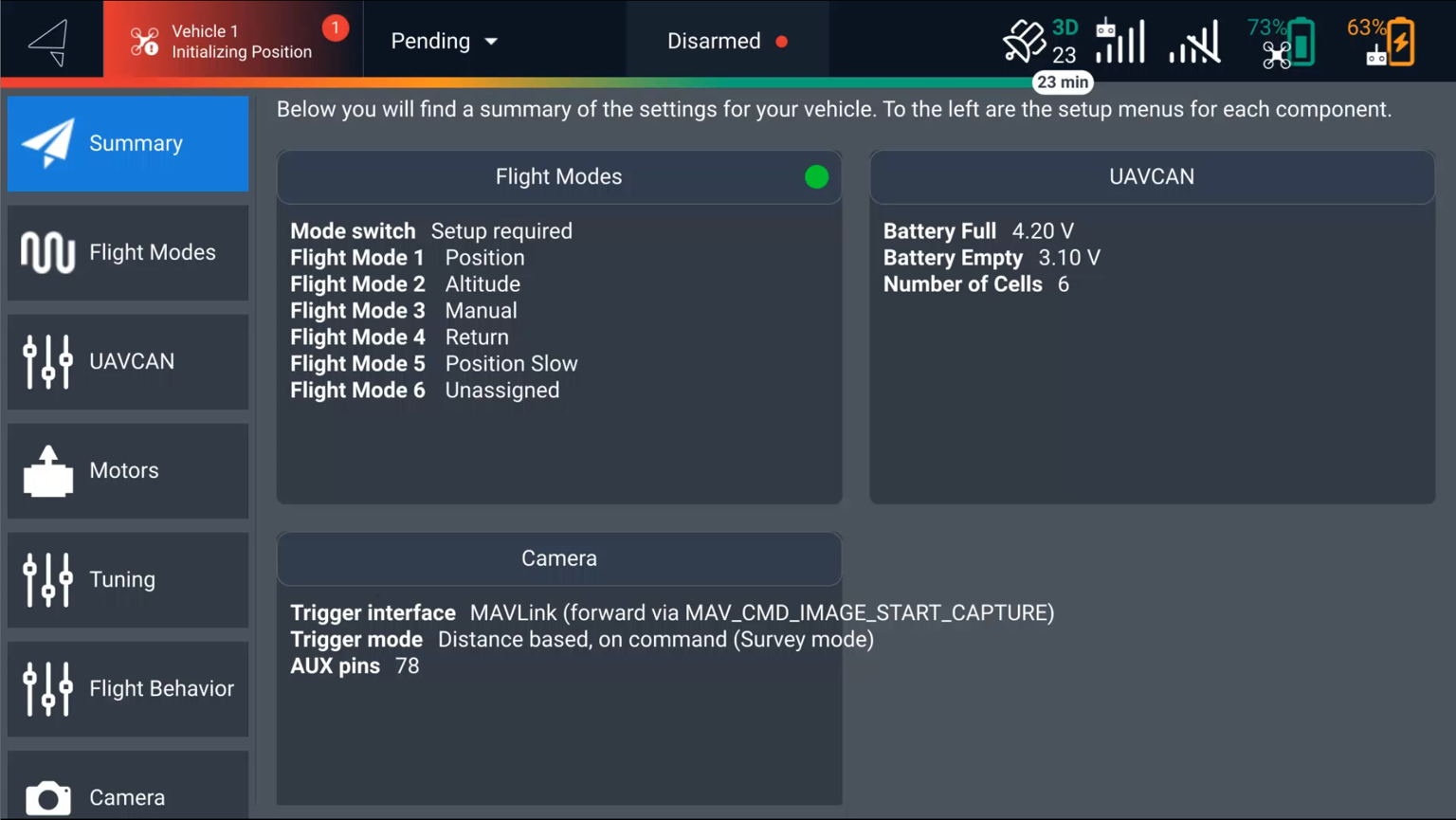

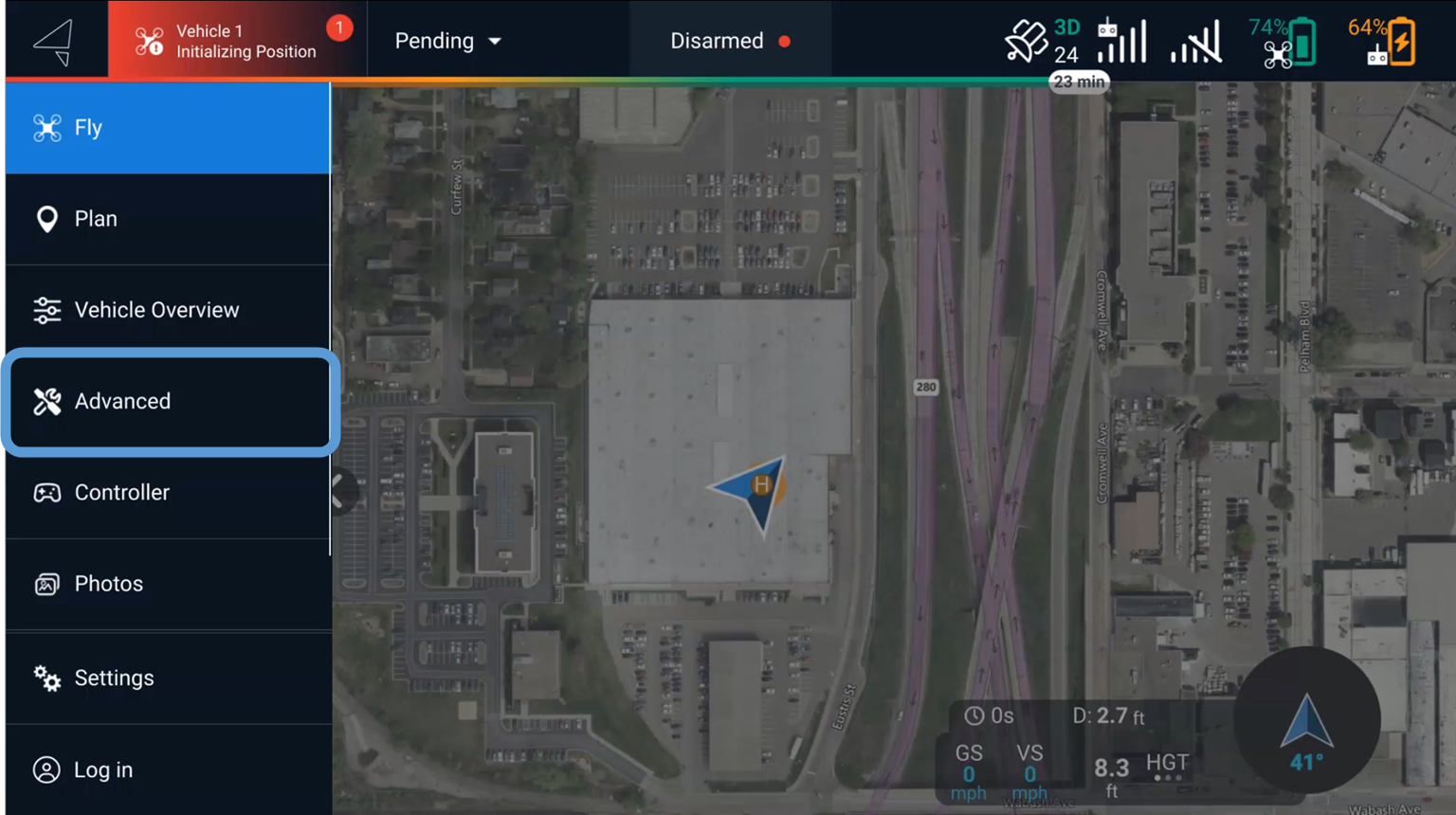

Press the Auterion Logo in the upper left hand corner to open the menu, then select the Advanced tab.

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2F2NM5cVAdntTHj2Zmkm7q%2Fimage.png?alt=media&#x26;token=b8048654-6818-4b80-a84f-0c1c82a19496" alt=""><figcaption></figcaption></figure>

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FEvxdhV3phOEVF1oRpC5y%2Fimage.png?alt=media&#x26;token=50ea1044-3228-4c82-9b27-c8e0fdad3226" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Open Parameter Menu

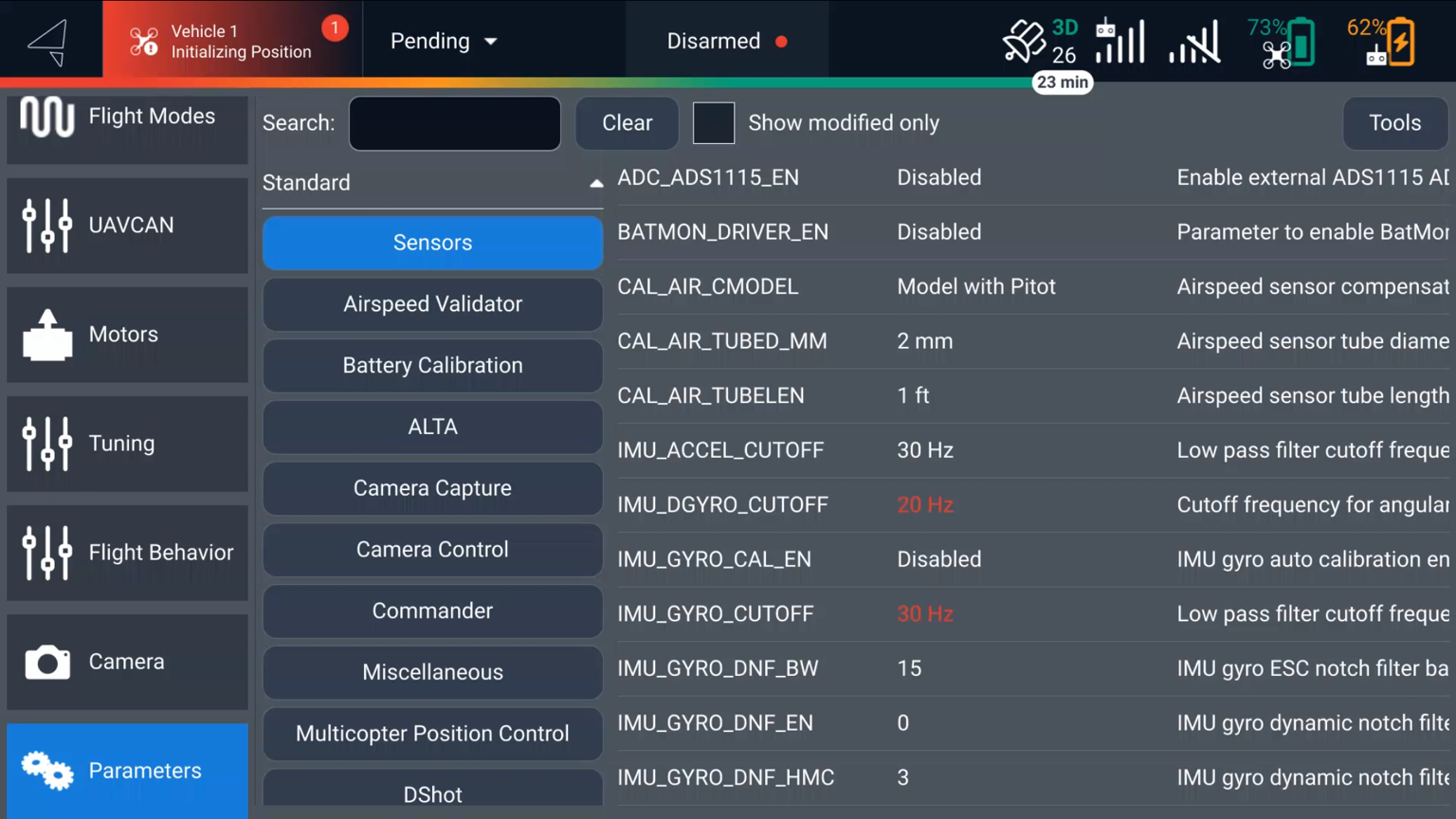

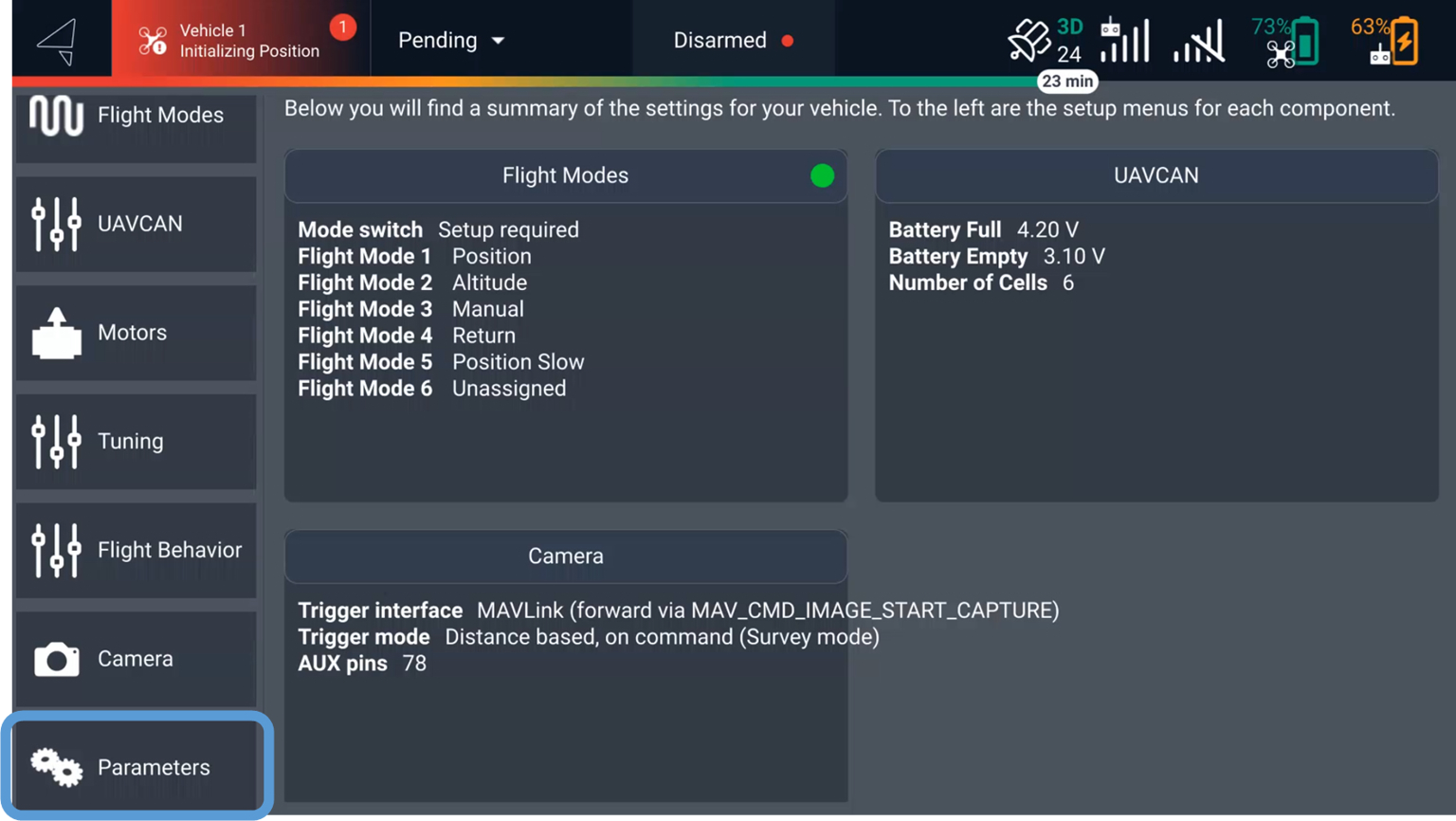

Scroll down in the left hand menu and select Parameters.

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2F1UmvQIDQ5VmDKeEMCuty%2Fimage.png?alt=media&#x26;token=67a2d491-7e28-4e4a-9733-d55cd1d89d34" alt=""><figcaption></figcaption></figure>

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FbCxAlKdSxiQy65RhHTYp%2Fimage.png?alt=media&#x26;token=c4a18a4e-21d2-418e-abfc-c81bd09a7fbe" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Serach for MAV\_2\_MODE

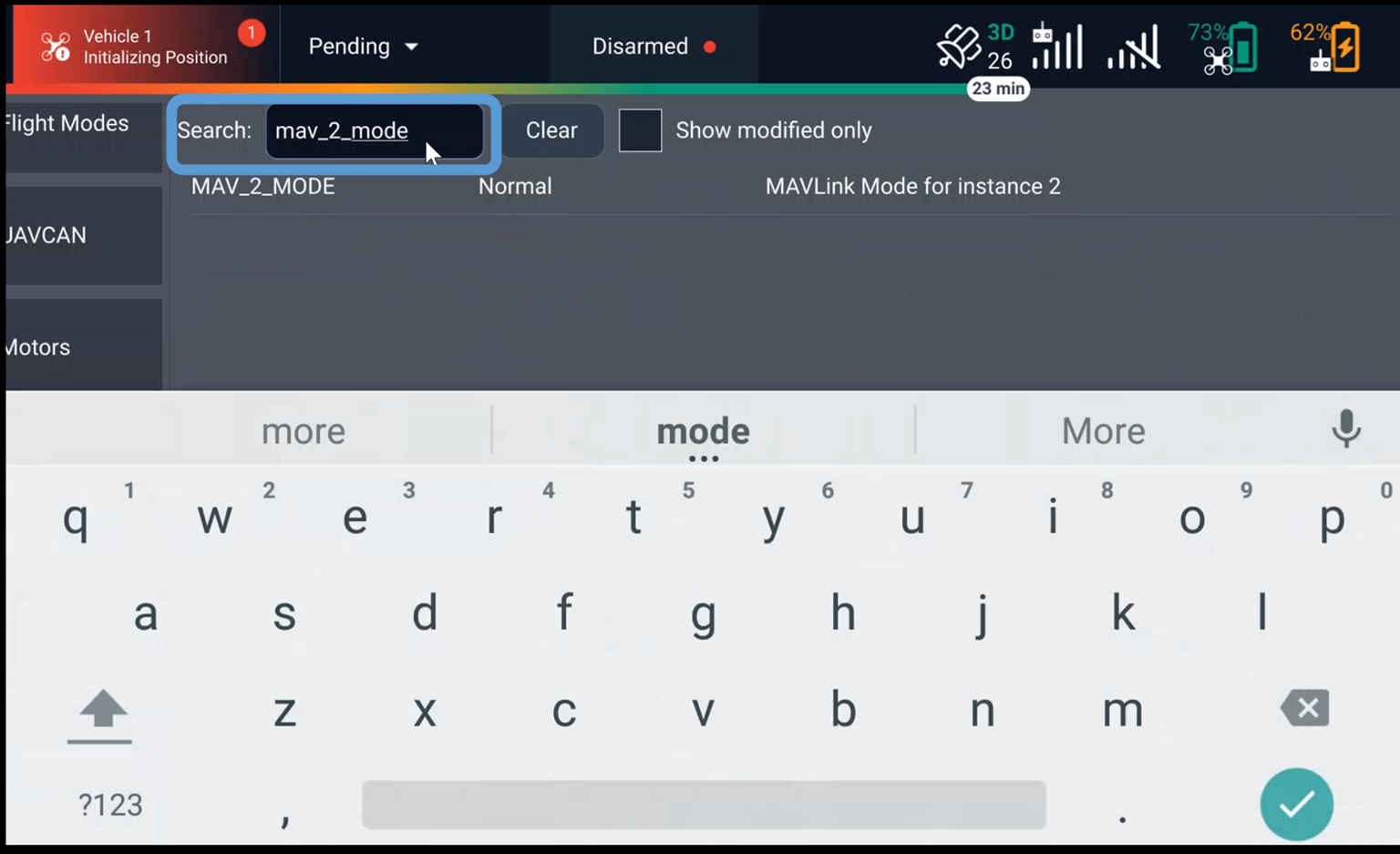

In the search bar at the top of the menu search for "MAV\_2\_MODE".

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FDotfy9v184NdUt9Mriup%2Fimage.png?alt=media&#x26;token=fecd00ec-610f-4e7d-aba2-ef76e439e208" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Change from GIMBAL to NORMAL

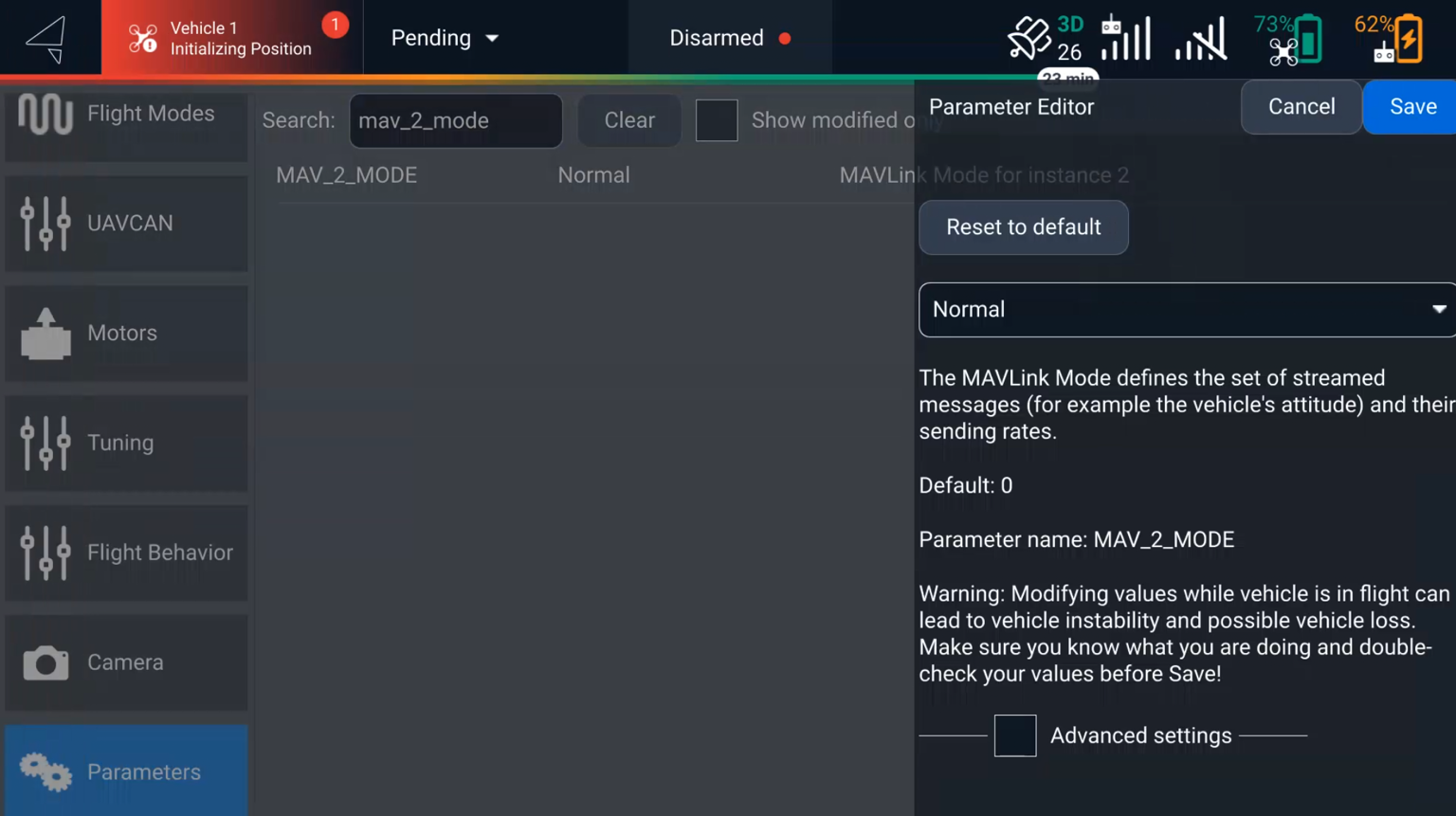

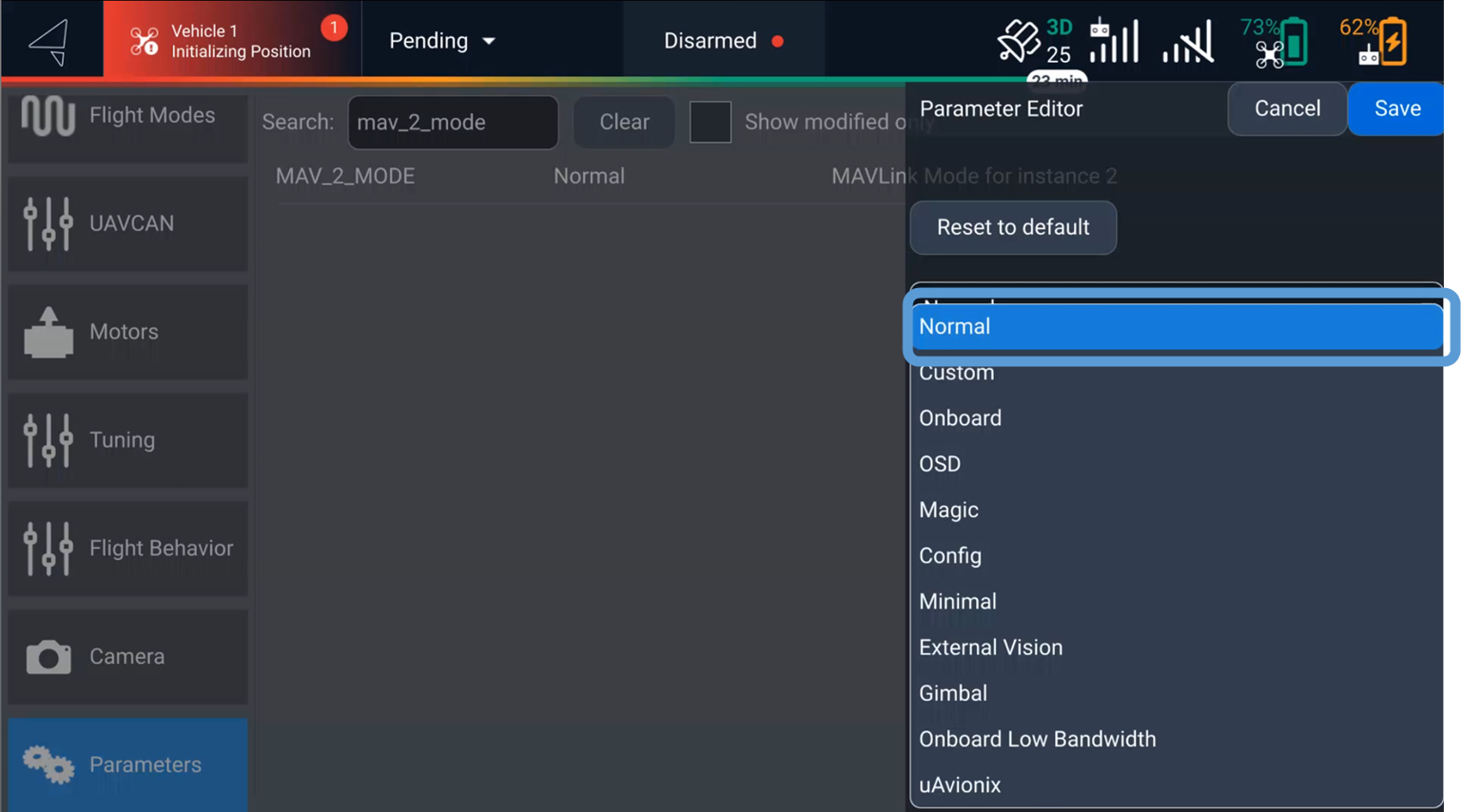

Tap on the parameter and a menu will appear on the right hand side of the screen. In the drop down menu select Normal and press Save.

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FXBZWxH9LUokTBBvPNhYF%2Fimage.png?alt=media&#x26;token=71176282-297d-4d18-8228-c89d1a91b264" alt=""><figcaption></figcaption></figure>

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FuAOlmhkQDevzOB7fcTNm%2Fimage.png?alt=media&#x26;token=d646c765-11b1-4d14-a850-02264c1d5c53" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Power Off Aircraft

To apply the changes the aircraft needs to be rebooted. Power the aircraft off.
{% endstep %}

{% step %}

### Install Sensor and Power On Aircraft

Install the 6X Sensor and power the aircraft & hand controller on.

{% content-ref url="../astro" %}
[astro](https://support.senterasensors.com/home/6x-series-sensors-user-guide/6x-series-sensors/installation/freefly/astro)
{% endcontent-ref %}
{% endstep %}

{% step %}

### Disable Advanced Mode

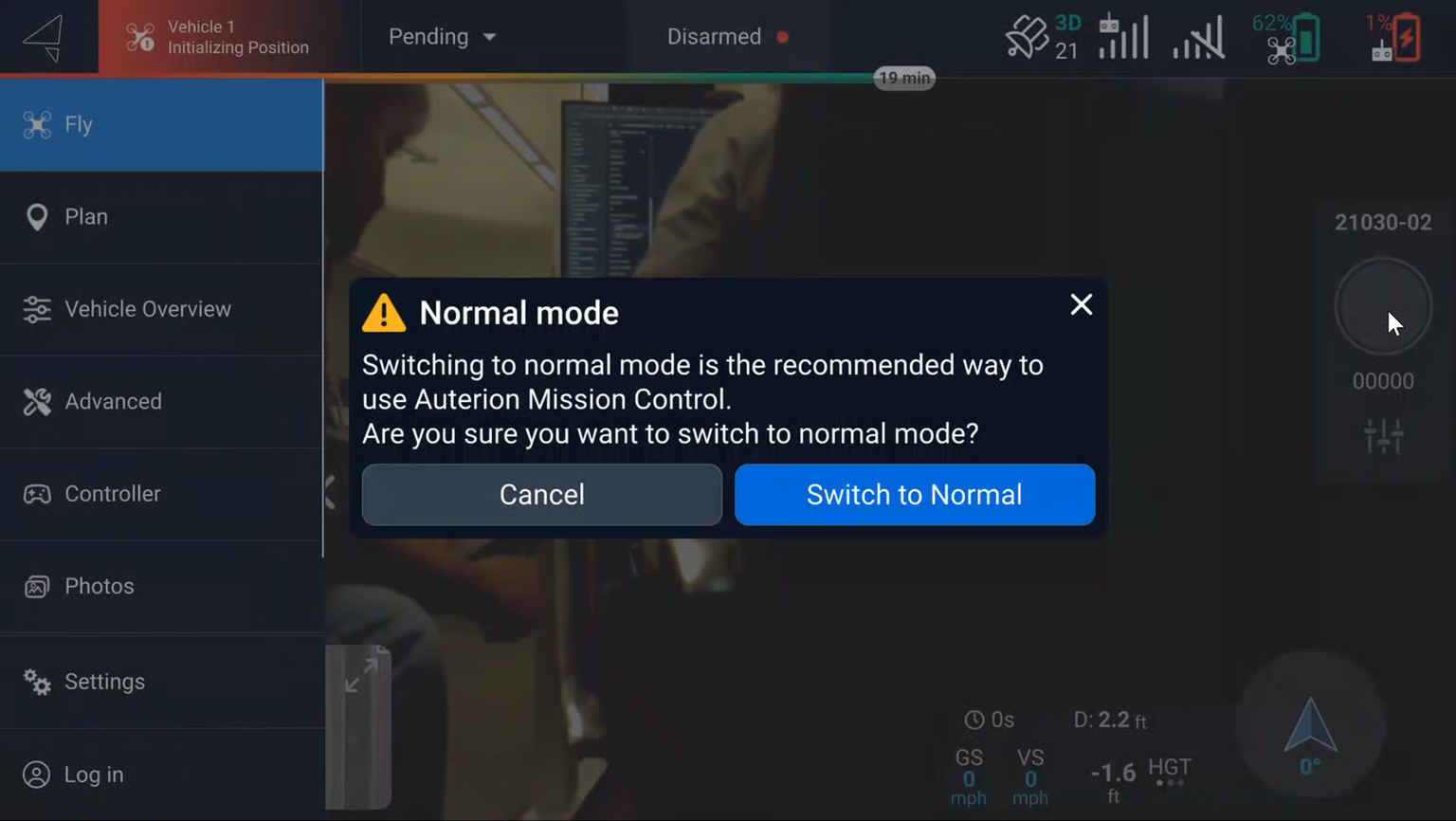

Repeatedly tap the Auterion logo in the upper left hand corner until the Normal mode pop up appears. Select Switch to Normal.

Or restart app/hand controller to switch back to normal mode.

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FnhNNONwHBQJdsfRpHDjc%2Fimage.png?alt=media&#x26;token=ac163339-9d5e-43ff-a85a-85570052c629" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Verify Functionality

Allow the aircraft and sensor to fully boot. Once the aircraft has achieved a 3D satellite fix the sensor will start a session and the light on the sensor will turn green.

{% hint style="warning" %}
The aircraft may need to be taken outside to obtain a GPS fix depending on your environment.
{% endhint %}

Other functionalities that can be checked:

* **Gimbal Steering:** Use the rocker wheel on the left side of the controller to change the pitch angle of the gimbal
* **Camera Triggering:** Use the physical image capture button to test the image capture. The lights on the camera will flash white. This can also be done with the on screen button in the video window.

{% hint style="danger" %}
The 6X does not support live video. The video window still hosts the camera interface menus.&#x20;
{% endhint %}
{% endstep %}
{% endstepper %}
