# How to Use

6X Series Sensors - Incident Light Sensor/External GPS How To Use Instructions

## Before Starting

### Reflectance Panel

If a reflectance panel is also being used see the page linked below:

{% content-ref url="/pages/jtCrdJGsEP4hMiAm6xNs" %}
[How To Use](/home/6x-series-sensors-user-guide/reflectance-panel/how-to-use.md)
{% endcontent-ref %}

***

## Install Light Sensor/GPS

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FWnW8S1B0SH1un38h5odL%2FInstall%20Sensor%20and%20ILS.gif?alt=media&amp;token=fdd691b5-8b77-46b2-99b4-6900d4b45de0" alt=""><figcaption></figcaption></figure>

1. Install the light sensor and gimbal onto the aircraft.&#x20;
2. Connect the USB-C cable to the light sensor.&#x20;
3. Secure the cable to the aircraft.&#x20;
4. Connect the USB-C cable to the port on the gimbal.&#x20;

<table data-card-size="large" data-view="cards"><thead><tr><th align="center"></th><th align="center"></th><th align="center"></th></tr></thead><tbody><tr><td align="center"><strong>For Gimballed Sensors</strong></td><td align="center"><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FCgaRYOipkahB3yDjcaFH%2Fimage.png?alt=media&amp;token=433fde43-8758-406a-9370-419fd9f0b119" alt="" data-size="original"></td><td align="center">Connect the light sensor/GPS to the USB-C port on the gimbal</td></tr><tr><td align="center"><strong>For Non-Gimballed Sensors</strong></td><td align="center"><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FiPlb2Nc8G7RmoN20XLLh%2Fimage.png?alt=media&amp;token=f356f20b-cb41-4a7e-9e9c-b694cf876304" alt="" data-size="original"></td><td align="center">Connect the light sensor/GPS to the USB-C port on the 6X</td></tr></tbody></table>

## Power on Aircraft & Verify Status LEDs

<figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FkMFZ4COX8bCmUneBcqSg%2FPower%20Sensor%20and%20Boot.gif?alt=media&amp;token=9ee7a1fc-a1a0-415a-95b6-32471aa94e87" alt=""><figcaption></figcaption></figure>

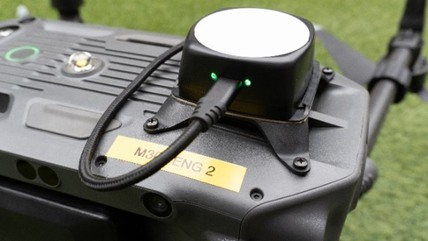

1. Power on the aircraft. This will also power the gimbal, sensor, and light sensor on.&#x20;
2. Verify the Status LEDs shown below have all turned solid green.&#x20;

<div><figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FSNdUvUpx3Kuia8c3KhOi%2Fimage.png?alt=media&amp;token=e9bea818-4dba-41ea-8532-10ed34b43a07" alt=""><figcaption></figcaption></figure> <figure><img src="https://816013970-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5Jgm6jwRCbkoXyPerUfI%2Fuploads%2FBq2bKBkEKoJim7OBxSnE%2Fimage.png?alt=media&amp;token=b15d44a4-ac88-45cc-8116-998eda56f906" alt=""><figcaption></figcaption></figure></div>

## Fly

The sensor and light sensor are now ready for flight.&#x20;


---
