# Exporting Map Layers

## Map Layers  <a href="#map_layers" id="map_layers"></a>

FieldAgent uses different file types to display different types of map layers. These Include:

<table data-full-width="false"><thead><tr><th>Map Type</th><th>File Type</th></tr></thead><tbody><tr><td>Orthomosaic</td><td>GeoTIFF</td></tr><tr><td>Quicktile</td><td>GeoTIFF</td></tr><tr><td>Stand Count</td><td>Shapefiles*</td></tr><tr><td>Tassel Count</td><td>GeoJSON</td></tr><tr><td>Field Boundaries and shapes</td><td>Shapefiles*</td></tr><tr><td>Plot Trial</td><td>GeoJSON &#x26; CSV</td></tr></tbody></table>

<img src="https://img.zohostatic.com/zde/static/images/info.png" alt="" data-size="line"> <mark style="background-color:blue;">\*Shapefiles are comprised of 5 different files. Make sure you download each file.</mark>&#x20;

### Exporting Map Layers From FieldAgent Web <a href="#exporting_map_layers_from_fieldagent_web" id="exporting_map_layers_from_fieldagent_web"></a>

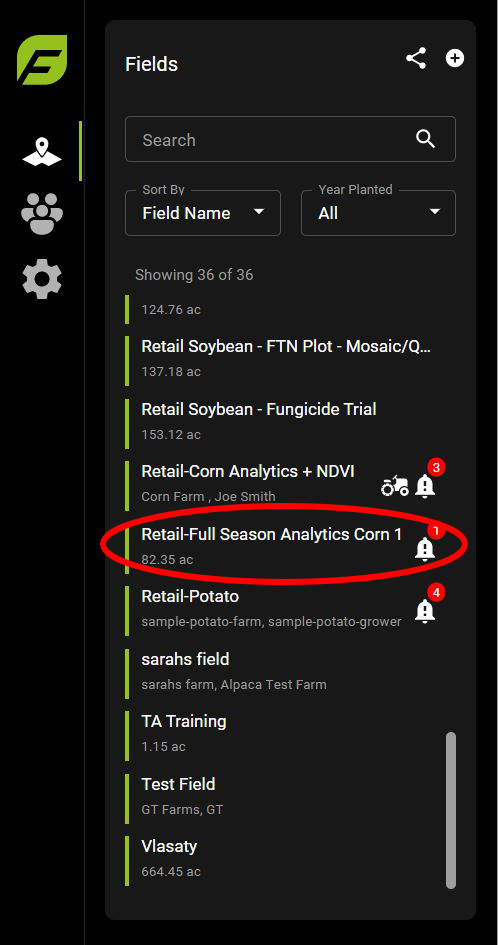

1\. Select the Field you want to export.

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/KXObrkYTef35RUkmG4Ix/d1e.jpg" alt="" width="374"><figcaption></figcaption></figure></div>

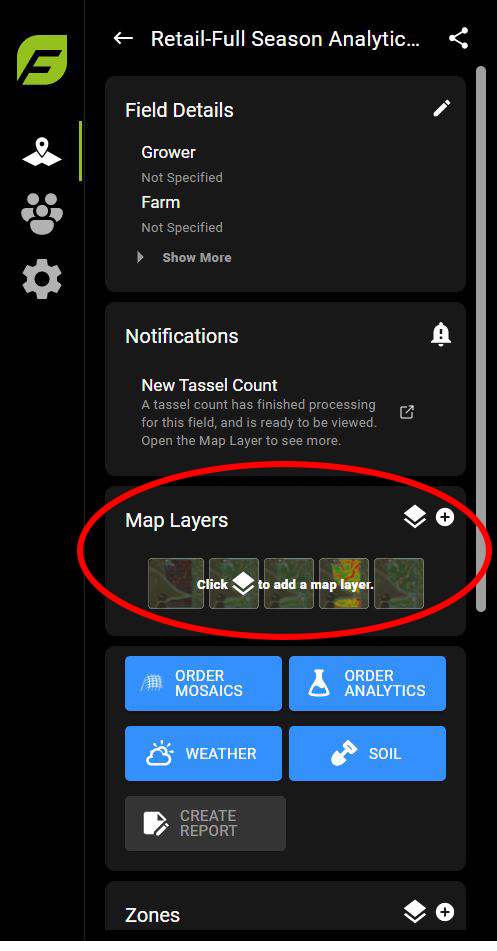

2\. Open the Map Layers section

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/Dh7QjYhVj9wI0CZPqwjI/d2e.jpg" alt="" width="373"><figcaption></figcaption></figure></div>

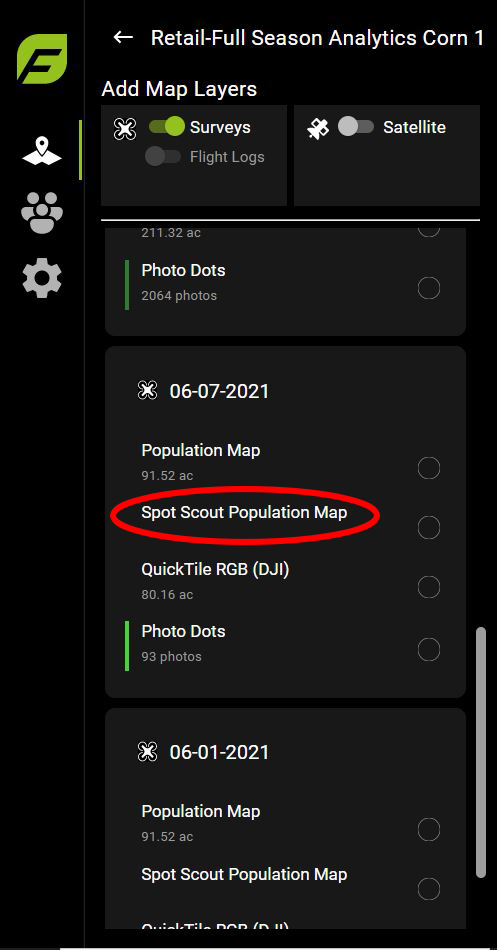

3\. Click the name of the survey to open the layer details section.&#x20;

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/cnWc7gC2XKlkV2BveQGE/d3e.jpg" alt="" width="373"><figcaption></figcaption></figure></div>

<img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/KKfIHKKggtMS4oYqzDhJ/image.png" alt="" data-size="line"> <mark style="background-color:blue;">Clicking the circle to the right of the name will display the map layer, make sure you click the name to open the details section.</mark>

\

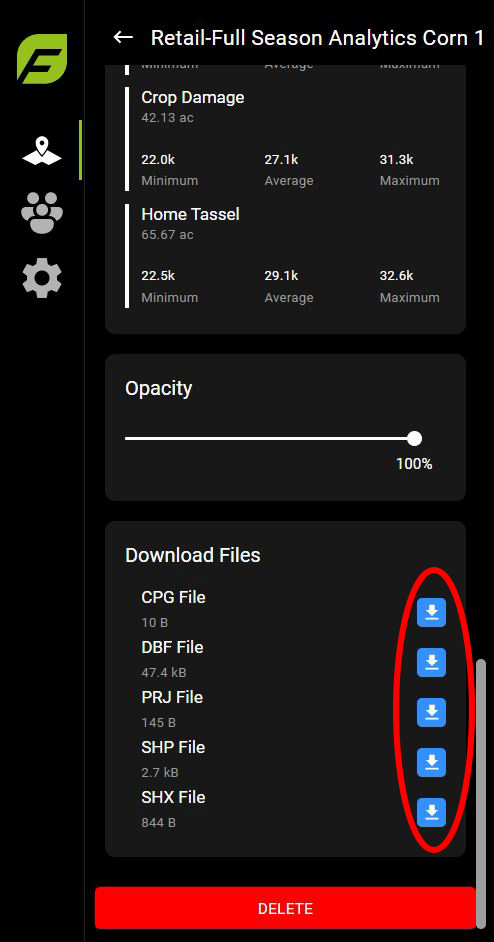

4\. Scroll to the bottom where you'll find the Download Files section.\
5\. Click the download icon for each file.

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/4KHTme32PgYEUrdK1YUE/d4e.jpg" alt="" width="371"><figcaption></figcaption></figure></div>

<img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/0AjcTYe2Y8b3aLzg7rwg/image.png" alt="" data-size="line"> <mark style="background-color:blue;">Shapefiles have multiple files to download, make sure you download every file.</mark> <br>

### Exporting Map Layers From FieldAgent Desktop <a href="#exporting_map_layers_from_fieldagent_desktop" id="exporting_map_layers_from_fieldagent_desktop"></a>

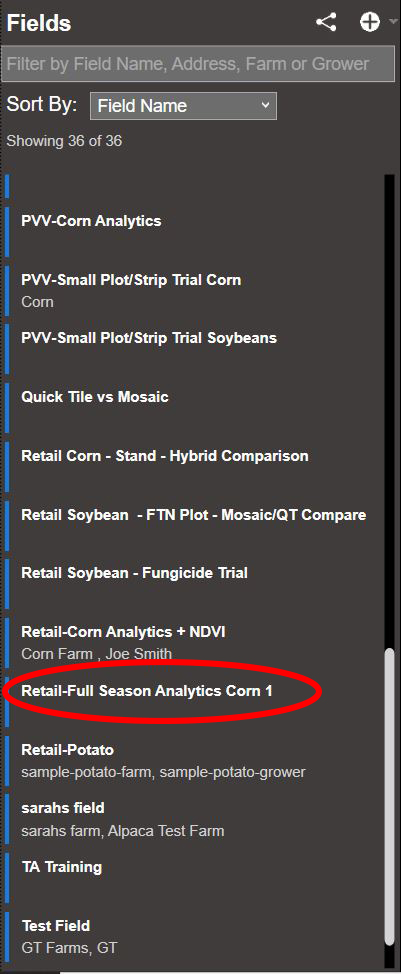

1\. Select the field you want to export from.&#x20;

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/UwWqiN2mRVpLn0VseKUL/d12e.jpg" alt="" width="301"><figcaption></figcaption></figure></div>

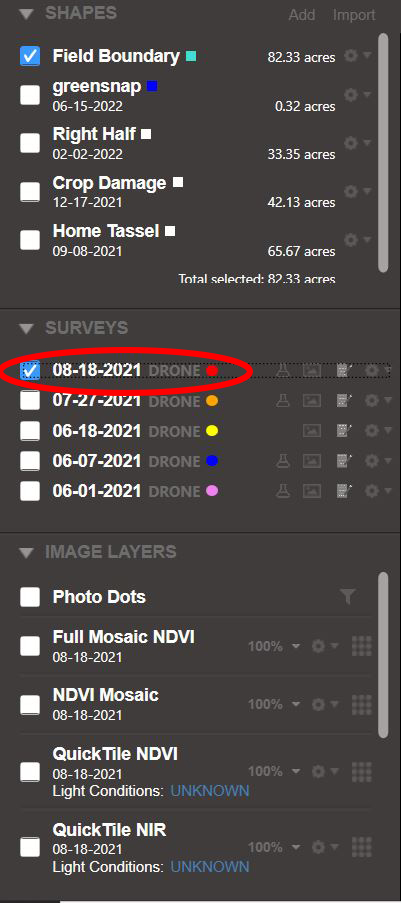

2\. Select the survey date that you want to export map data from. Maps captured on that date will now populate in the Images Layer.

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/Sbb9TPByuiswpo4Jlv64/d22e.jpg" alt="" width="301"><figcaption></figcaption></figure></div>

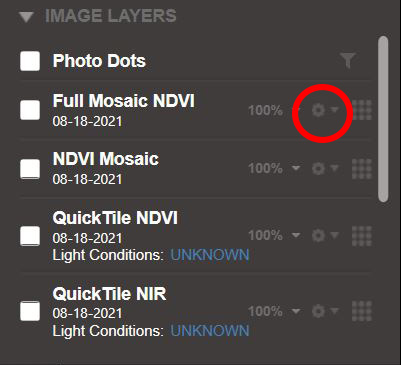

3\. Click the gear icon next to your map layer and select export from the drop down menu.

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/OVbMWSi0HrEHbfKovcgP/d22.1e.jpg" alt="" width="301"><figcaption></figcaption></figure></div>

4\. Choose the export location and press OK. Depending on your map type, you will also download the Images used to create your map.&#x20;

### Exporting Field Boundaries From FieldAgent Desktop  <a href="#exporting_field_boundaries_from_fieldagent_desktop" id="exporting_field_boundaries_from_fieldagent_desktop"></a>

<img src="https://img.zohostatic.com/zde/static/images/info.png" alt="" data-size="line"> <mark style="background-color:blue;">Field Boundaries can only be exported from FieldAgent Desktop. Field boundaries created in FieldAgent Web or Mobile can be accessed on Desktop, once they have been synced.</mark>&#x20;

\
1\. Select the field you want to export

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/4oHseRz3mUGS1QE27026/d12e.jpg" alt="" width="301"><figcaption></figcaption></figure></div>

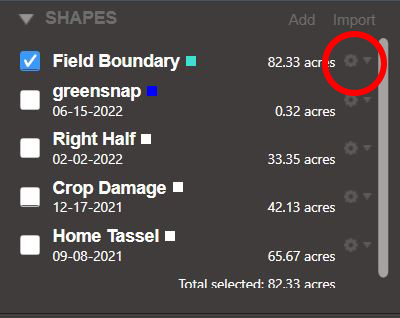

2\. Click the gear icon next to your desired boundary in the shape section. Select export from the drop down menu.

<div align="left"><figure><img src="https://content.gitbook.com/content/sPOYY19dQnuyPXFXGPWK/blobs/EyUheZvTCSUfUkPJQExE/d32.1e.jpg" alt="" width="300"><figcaption></figcaption></figure></div>

3\. Choose the export location and press OK.


---
