# Module Installation for 6X

## Cable Clip

{% stepper %}
{% step %}

### Cable Clips (First Time Installation Only)

Use the alcohol wipe provided with the RTK-PPK kit to prepare the surface of the drone. Clean the area shown.&#x20;

Once the alcohol dries peal the backing off of the clips and place them as shown. Apply firm pressure to the clip to ensure it bonds well.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2FZpeTRJp25y01Xdn3NUsZ%2F1200%20Cable%20Clips%20%E2%80%91%20Made%20with%20FlexClip.gif?alt=media&#x26;token=77248d97-5627-4ecf-b6aa-556f52285f4a" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

## Module Installation

{% stepper %}
{% step %}

#### Attach the Module Mount  <a href="#mount-module-to-aircraft" id="mount-module-to-aircraft"></a>

Place the module mount on the top of the drone. Press down on the screw and tighten to secure.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2Fm0KNY4IJQ1eYs0gYq8Vi%2FIMG_6693_2.gif?alt=media&#x26;token=fcf63e97-4c98-49b8-a5d9-51633523f09f" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Attach Module to Aircraft <a href="#mount-module-to-aircraft" id="mount-module-to-aircraft"></a>

Connect the Right Angle USB-C to USB-A Cable to the RTK-PPK Module.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2F4jdKjogVMZJi7WuAV8uL%2FAdobe%20Express%20-%20test%20gif-2.gif?alt=media&#x26;token=8eaea15f-3630-4fbe-8e7a-ab4413e98575" alt=""><figcaption></figcaption></figure>

Then place the RTK PPK module on the module mount. Ensure the forward arrow is facing the sensor. Tighten the screws.

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2F0YBoquJalyfIxQWr6EcN%2FIMG_6698.gif?alt=media&#x26;token=a66751ea-62a2-4135-9e3b-0208ffa06e10" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Mount ILS to aircraft

Insert the ILS into the mount. Ensure the push button is facing the sensor at the front of the drone and the USB-c port is facing the rear on the drone.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2F649vKh9hRXuX23sQaXwB%2FAdobe%20Express%20-%20if1200%206x%20ils%20mount.gif?alt=media&#x26;token=baf7167c-2701-434e-a30d-7b6b1921029f" alt=""><figcaption></figcaption></figure>

Then Connect the Right Angle USB-C to USB-A Cable from the module to the ILS.

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2Fsk0dv7eNzXlGaPmRxyib%2FAdobe%20Express%20-%20if1200%206x%20ils%20cable%20connect.gif?alt=media&#x26;token=2900e8ef-a47a-489c-a46c-6c6dbd38f3d2" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

#### Install Coax Cable (NON-NTRIP RTK ONLY) <a href="#connect-coax-cable-non-ntrip-rtk-only" id="connect-coax-cable-non-ntrip-rtk-only"></a>

{% hint style="info" %}
This step is only required when operating when the Sentera Ground Radio is used to provide the corrections data. For example when using a base station or laptop for the corrections source.
{% endhint %}

Plug in the coax cable into the side of the RTK PPK module.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2FDEG93p2GrVlUEJmVaLZG%2FSequence%2001_7.gif?alt=media&#x26;token=2308e821-e2a4-4bfe-b314-990bf2c8c0d8" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
When unplugging the coax cable, pull directly outward. Pulling the cable at an angle can cause damage to the cable.
{% endhint %}

Then connect the antenna mounting bracket to the rail system on the bottom of the drone.&#x20;

Use the provided hex driver to righten the screw in the bracket and secure the mount.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2FnZXpb50DvS5LTPAPtygk%2F1200%20SMA%20to%20Rail%20%E2%80%91%20Made%20with%20FlexClip.gif?alt=media&#x26;token=60345396-0870-480a-8fbe-35a687df38db" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Install 915Mhz Antenna (NON-NTRIP RTK ONLY)

{% hint style="info" %}
This step is only required when operating when the Sentera Ground Radio is used to provide the corrections data. For example when using a base station or laptop for the corrections source.
{% endhint %}

Screw the antenna onto the connector as show. Point the antenna straight down.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2F4Qv4lB3aKHCakDleZ4fA%2F1200%20antenna%20to%20sma%20%E2%80%91%20Made%20with%20FlexClip.gif?alt=media&#x26;token=d227fd5f-4f7c-495a-8b30-8b71f3f095eb" alt=""><figcaption></figcaption></figure>

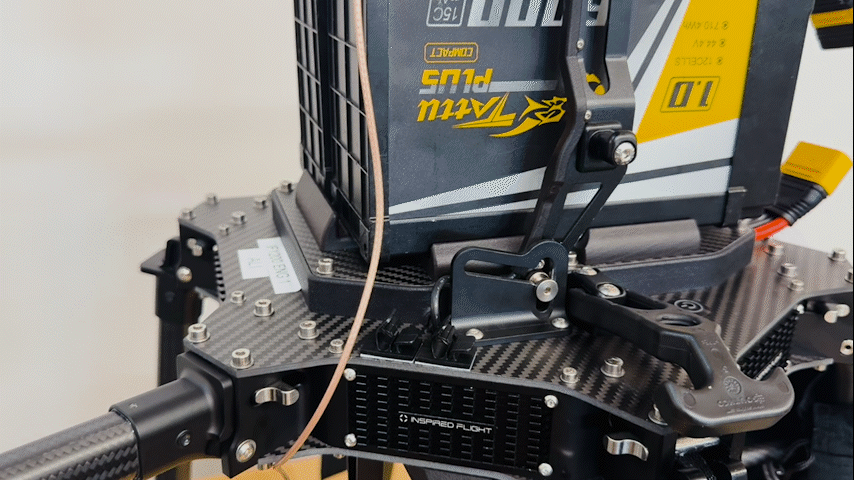

Then secure the coax cable into the cable clips.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2Fm6luGkAsyrtWQR3vLcFq%2FSequence%2001_6.gif?alt=media&#x26;token=0318cfd5-09fd-4bf0-9062-4cd027c5c104" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Install USB-C to USB-C Cable

Plug in the USB-C to USB-C cable into the side of the RTK PPK module.

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2FycL4QBAIyIzZ7JLUbLJR%2FIMG_6702.gif?alt=media&#x26;token=477af2c1-e17f-4f8b-b6b6-4cae09953373" alt=""><figcaption></figcaption></figure>

Then secure the cable into the clip.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2FyjFTAex4nrG7xIAo74qE%2F1200%2065R%20secure%20usb%20%E2%80%91%20Made%20with%20FlexClip.gif?alt=media&#x26;token=c20a96d4-0608-44df-beb4-fecb3de556db" alt=""><figcaption></figcaption></figure>

Next use the leg clips to attach the USB cable to leg of the aircraft. Place one towards the top of the leg and the other about halfway down.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2F4NIoLRun8Y28Lyf8BH2E%2F1200%2065R%20secure%20usb%20leg%20%E2%80%91%20Made%20with%20FlexClip.gif?alt=media&#x26;token=eb91303f-eabb-4eab-8904-37306c2ee9ad" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Install The 6X

Install the 6X into the payload connector and secure the latch.&#x20;

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2FfUc2bqdsHtwqnzO7jGZf%2FIMG_6704.gif?alt=media&#x26;token=f040b431-b352-4959-9501-2f70cdcc13c6" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Connect Sensor

Connect the other end of the USB-C to USB-C cable into the USB-C port on the gimbal.&#x20;

{% hint style="info" %}
Make sure to use the top port on the gimbal when connecting the USB-C cable.

Do not use the USB-C port on the sensor itself.
{% endhint %}

<figure><img src="https://880432523-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FZVOsw5zLqTIEr4ErRyeO%2Fuploads%2FYX3NrOX2LIZ9DsBvoATP%2FIMG_6705.gif?alt=media&#x26;token=15a79657-8b13-41a5-afe7-541d165519b7" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}
